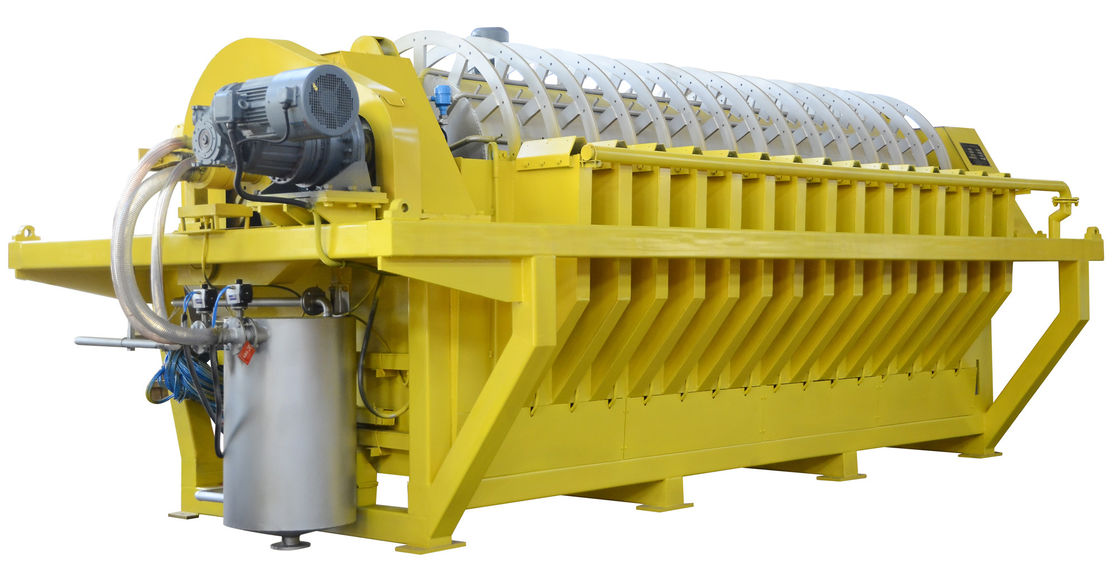

16 Cycles Ceramic Disc Filter 80m2 HTG 45 Series Tailing Dewatering

16 Cycles Ceramic Disc Filter 80m2 HTG 45 Series Tailing Dewatering
16 Cycles Ceramic Disc Filter 80m2 HTG 45 Series Tailing Dewatering

Large Image :  16 Cycles Ceramic Disc Filter 80m2 HTG 45 Series Tailing Dewatering Get Best Price

Product Details:

Place of Origin: Yixing,Jiangsu
Brand Name: Yuxing
Certification: ISO9001-2015
Model Number: HTG

Payment & Shipping Terms:

Minimum Order Quantity: One Piece
Packaging Details: Strong Export Wooden Cases
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 100 units per year
Detailed Product Description
Product Name: HTG Full-automatic Ceramic Filters Filter Material: Micro-hole Ceramic Filter Plate
Filtration Area: 1~240m2 Usage: Mining Dewatering
Environmental: Clear Filtrate Automation: PLC Program Control
High Light:

rotary disc vacuum filter

,

vacuum rotary disc filter

16 cycles , 80m2 HTG 45 Series Ceramic Disc Filter for Tailing Dewatering



We are a professional manufacturer of ceramic filters. It is a national high-tech enterprise with innovative design concepts, rich design experience and leading research and development equipment. In the past 30 years, it has provided HTG full-automatic ceramic filter with superior performance, high efficiency, energy saving and environmental protection for many domestic and foreign customers.



HTG full-automatic ceramic filter is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It has many national inventions patents and is National Key New Product. It is the unit in charge of taking the lead to draft the national industry standard. At present, it is applicable to multiple fields .Filtering area of products ranging from 1 to 240 m2, provide users with more and better choices.



Product Features

  • Dewatering & drying performance with high vacuum and good filter cake, high productivity and excellent solids recovery.
  • Clear filtrate, neat work environment, and all-directional environmental protection system without pollution
  • PLC program control, high automation, easy operation, and high utilization of equipment.
  • Compact design, high performance, ultra-low operating and maintenance costs, and remarkable energy saving.
  • Ceramic filter plate has a long service life and wide application.

Model Description of Ceramic Filter

16 Cycles Ceramic Disc Filter 80m2 HTG 45 Series Tailing Dewatering 0

Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

        /5

HTG50

        /5

HTG60

        /5

HTG80

        /5

HTG100

         /5

HTG120

         /6

HTG144

       /12

HTG180

       /12

HTG204

       /12

HTG240

       /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786 4786



  • Customizable
