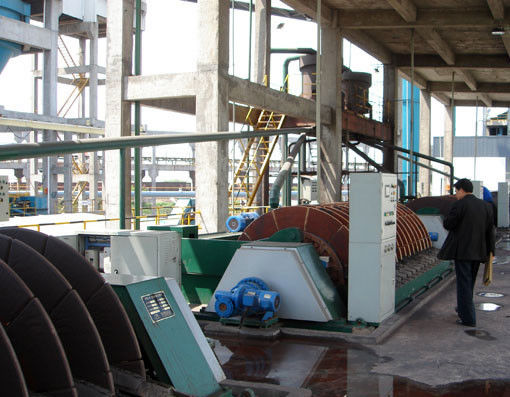

Dewatering Ceramic Rotary Vacuum Disc Filter for Separating Liquids From Solids
HTG full-automatic ceramic filter is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It is the unit in charge of taking the lead to draft the national industry standard on ceramic filter and ceramic filter plate. It has more than 20 national patents for ceramic filter.
The ceramic filter mainly consists of the rotor, distribution head, agitator, scraper, slurry tank, back flushing system, ultrasonic cleaning system, PLC operating system and electric control system. It is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. When the equipment is in operation, it is divided into four areas: suction area, drying area, discharge area and backwash area.
suction area:the ceramic filter plate immersed in the slurry forms a thick layer of granular stack rapidly on the surface of the ceramic plate under the action of vacuum(filter cake).
drying area:The filter cake formed with the rotation enters the drying zone and continues to be dewatered under the action of vacuum.
discharge area:The dried filter cake is automatically unloaded by a spatula and then it is transported by belt to the desired place.
backwash area:After discharging, the ceramic plate finally enters the backwash zone. The filtered backwash fluid enters the interior of the ceramic plate through the distribution head and flushes the particles blocked in the micro-pore of the ceramic plate, thus completing a cycle of filtering operation.
|
Model Parameter |
HTG01/1 | HTG06/3 | HTG09/3 | HTG12/3 | HTG15/3 | HTG18/3 | HTG21/3 | HTG24/3 | HTG30/3 |
| Filtration area | 1 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Installed power | 6 | 8 | 10 | 11 | 14 | 15 | 15 | 15 | 18 |
| Weight(t) | 2.2 | 5.6 | 7.9 | 8.5 | 9.2 | 9.9 | 10.2 | 11.2 | 12.8 |
| Length (mm) | 1910 | 3062 | 4170 | 4360 | 4770 | 4780 | 5375 | 5453 | 6318 |
| Width(mm) | 1900 | 3025 | 2935 | 3200 | 3200 | 3200 | 3200 | 3200 | 3400 |
| Height (mm) | 1780 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
|
Model Parameter |
HTG45/3 | HTG51 / 3.75 | HTG45 / 3.75 | HTG60/4 | HTG80/4 | HTG15/5 | HTG20/5 | HTG25/5 | HTG30/5 |
| Filtration area | 45 | 51 | 45 | 60 | 80 | 15 | 20 | 25 | 30 |
| Installed power | 22 | 22 | 22 | 30 | 40 | 17 | 17 | 18 | 20 |
| Weight(t) | 15.6 | 13.1 | 12 | 18.5 | 24 | 7 | 7.2 | 7.9 | 9.5 |
| Length (mm) | 7998 | 6300 | 6100 | 8054 | 9562 | 3930 | 4470 | 4690 | 4810 |
| Width(mm) | 3410 | 3020 | 3020 | 3150 | 3510 | 3410 | 3510 | 3510 | 3510 |
| Height (mm) | 2750 | 2720 | 2720 | 3270 | 3233 | 2980 | 2980 | 2980 | 3035 |
|
Model Parameter |
HTG45 /5 |
HTG50 /5 |
HTG60 /5 |
HTG80 /5 |
HTG100 /5 |
HTG120 /6 |
HTG144 /12 |
HTG180 /12 |
HTG204 /12 |
HTG240 /12 |
| Filtration area | 45 | 50 | 60 | 80 | 100 | 120 | 144 | 180 | 204 | 240 |
| Installed power | 22 | 22 | 29 | 39 | 43 | 57 | 67 | 114 | 116.8 | 121 |
| Weight(t) | 11.3 | 12.5 | 14 | 18.5 | 23 | 25 | 28.5 | 39 | 42 | 45 |
| Length (mm) | 5470 | 5690 | 6130 | 7253 | 8094 | 9437 | 7260 | 9670 | 10470 | 11670 |
| Width(mm) | 3510 | 3510 | 3510 | 3510 | 3510 | 3565 | 5330 | 5330 | 5330 | 5330 |
| Height (mm) | 3035 | 3035 | 3035 | 3035 | 3035 | 3295 | 4786 | 4786 | 4786 |
4786 |
Our products are sold all over the world, you can rest assured.
