45㎡ Mining Dewatering Equipment , Ceramic Disc Filter PLC Program Control

45㎡ Mining Dewatering Equipment , Ceramic Disc Filter PLC Program Control

  • High Light

    ceramic filters

    ,

    ceramic dewatering machine

    ,

    45m2 ceramic disc vacuum filter

  • Product Name
    HTG Full-automatic Ceramic Filters
  • Filter Material
    Micro-hole Ceramic Filter Plate
  • Filtration Area
    1~240m2
  • Usage
    Sludge Dewatering
  • Environmental
    Clear Filtrate
  • Automation
    PLC Program Control
  • Place of Origin
    Yixing,Jiangsu
  • Brand Name
    Yuxing
  • Certification
    ISO9001-2015
  • Model Number
    HTG
  • Minimum Order Quantity
    One Piece
  • Packaging Details
    Strong Export Wooden Cases
  • Delivery Time
    45 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 units per year

45㎡ Mining Dewatering Equipment , Ceramic Disc Filter PLC Program Control

HTG High Efficient Ceramic  Disc Vacuum Filter 45㎡ for Sludge Dewatering



Product Introduction

The company has started developing and manufacturing ceramic filters since the 1990s.It is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It has passed the national technical appraisal and rated as National Key New Product.



Working Principle

The full-automatic ceramic filter mainly consists of the rotor, distribution head, agitator, scraper, slurry tank, back flushing system, ultrasonic cleaning system, PLC operating system and electric control system.

When the vacuum zone starts working, the ceramic filter plate immersed in the slurry forms a thick layer of granular stack rapidly on the surface of the ceramic plate under the action of vacuum, and the filtrate is filtered through the ceramic plate to the distribution head to reach the vacuum drum. In the drying zone, the filter cake continues to be dewatered under the action of vacuum until dry, and then it is transported by belt to the desired place after being scraped off in the discharge zone.

After discharging, the ceramic plate finally enters the backwash zone. The filtered backwash fluid enters the interior of the ceramic plate through the distribution head and flushes the particles blocked in the micro-pore of the ceramic plate, thus completing a cycle of filtering operation. After running for a long time, the filter can be cleaned by combining the ultrasonic and chemical media to maintain its efficient operation.

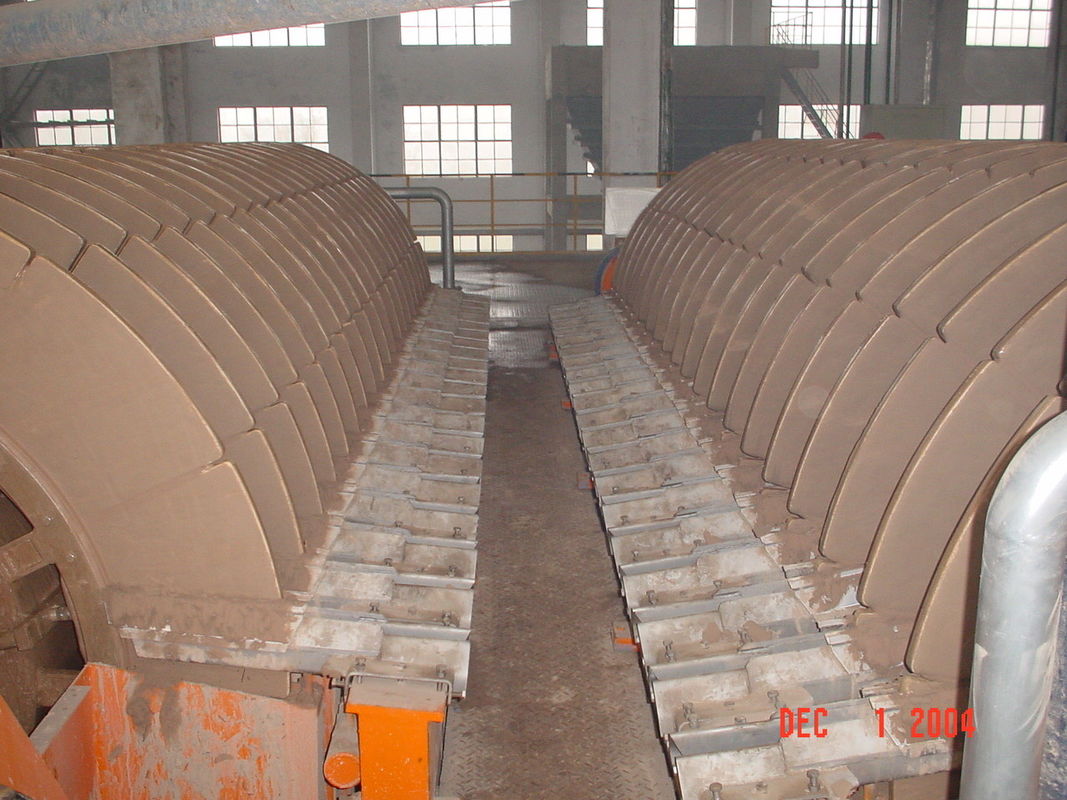

45㎡ Mining Dewatering Equipment , Ceramic Disc Filter PLC Program Control 0

Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

       /5

HTG50

        /5

HTG60

        /5

HTG80

       /5

HTG100

         /5

HTG120

         /6

HTG144

        /12

HTG180

       /12

HTG204

        /12

HTG240

        /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786 4786



  • Customizable



Technical service

In the spirit of pioneering, innovation and all-round service, we are dedicated to providing best solutions for filtration and dewatering of domestic and foreign iron concentrates, copper concentrates, zinc concentrates, sulfur concentrates, nickel concentrates, lead concentrates, aluminum concentrates, gold concentrates, vanadium concentrates, non-metallic concentrates, as well as beneficiation of low-grade phosphorite, filtration and dewatering of various tailings, and other technological and environmental problems.
