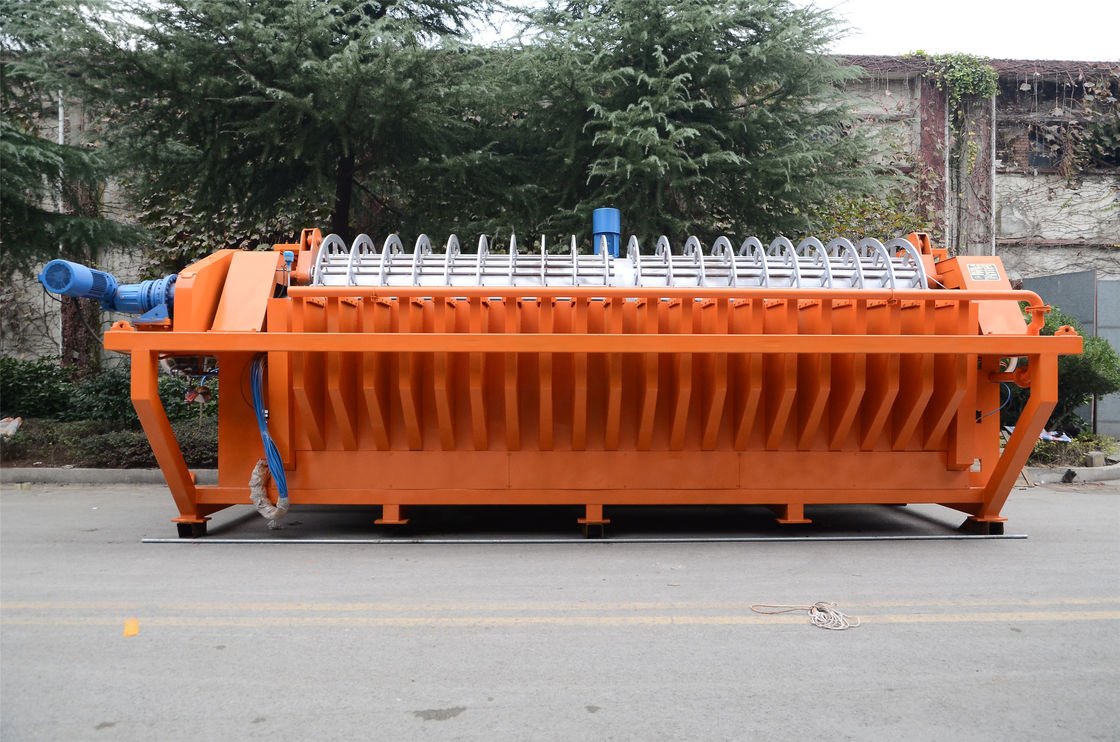

HTG 45 Series Disk Vacuum Filter Good Filter Cake Mining Dewatering

HTG 45 Series Disk Vacuum Filter Good Filter Cake Mining Dewatering

  • High Light

    ceramic filters

    ,

    ceramic dewatering machine

    ,

    ceramic filters for dewatering

  • Product Name
    HTG Full-automatic Ceramic Filters
  • Filter Material
    Micro-hole Ceramic Filter Plate
  • Filtration Area
    1~240m2
  • Usage
    Mining Dewatering
  • Automation
    PLC Program Control
  • Environmental
    Clear Filtrate
  • Place of Origin
    Yixing,Jiangsu
  • Brand Name
    Yuxing
  • Certification
    ISO9001-2015
  • Model Number
    HTG
  • Minimum Order Quantity
    One Piece
  • Packaging Details
    Strong Export Wooden Cases
  • Delivery Time
    45 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 units per year

HTG 45 Series Disk Vacuum Filter Good Filter Cake Mining Dewatering

HTG 45 Series Disk Vacuum Filter for Dewatering with Good Filter Cake



Ceramic filter is a solid-liquid separation equipment with its micro-porous ceramic filter plate as its core technology combined with high-tech such as electromechanical, ultrasonic technology and automatic control. It is applicable to environmental protection industries such as mining, mineral processing and metallurgy.



Our pursuit is constantly innovating, enterprising, and providing customers with high-performance, low-energy, pollution-free environmentally friendly products. Breaking through the large-scale production of ceramic filter plates, the large-scale and ultra-large design and manufacture of ceramic filters. The ceramic filters of 120m2,144 m2,180 m2,204 m2,244 m2 models offer users more and more optimized options.



Product Features

  • Dewatering & drying performance with high vacuum and good filter cake, high productivity and excellent solids recovery.
  • Clear filtrate, neat work environment, and all-directional environmental protection system without pollution
  • PLC program control, high automation, easy operation, and high utilization of equipment.
  • Compact design, high performance, ultra-low operating and maintenance costs, and remarkable energy saving.
  • Ceramic filter plate has a long service life and wide application.



Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

        /5

HTG50

        /5

HTG60

        /5

HTG80

        /5

HTG100

         /5

HTG120

         /6

HTG144

       /12

HTG180

       /12

HTG204

       /12

HTG240

       /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786 4786



  • Customizable
