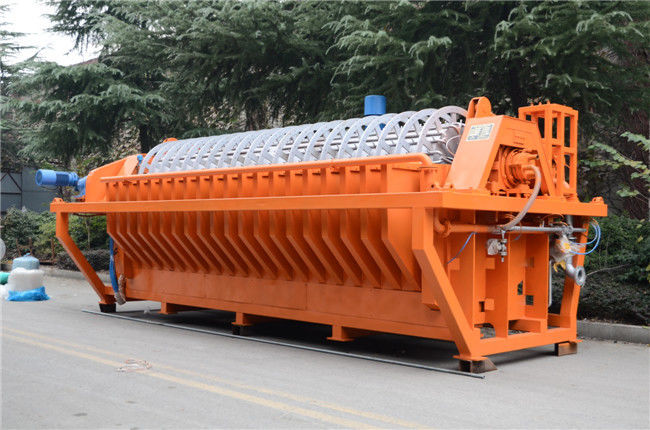

HTG Ceramic Vacuum Filter System Full Automatic For Dewatering

HTG Ceramic Vacuum Filter System Full Automatic For Dewatering
HTG Ceramic Vacuum Filter System Full Automatic For Dewatering

Large Image :  HTG Ceramic Vacuum Filter System Full Automatic For Dewatering Get Best Price

Product Details:

Place of Origin: Yixing,Jiangsu
Brand Name: Yuxing
Certification: ISO9001-2015
Model Number: HTG

Payment & Shipping Terms:

Minimum Order Quantity: One Piece
Packaging Details: Strong Export Wooden Cases
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 100 units per year
Detailed Product Description
Product Name: HTG Full-automatic Ceramic Filters Filter Material: Micro-hole Ceramic Filter Plate
Filtratio Area: 1~240m2 Usage: Sludge Dewatering
Environmental: Clear Filtrate Energy Saving: Low Energy
High Light:

ceramic disk filter

,

rotary disk filter

HTG Full-automatic Ceramic Vacuum Filter System For Dewatering





The ceramic filter uses the capillary effect of the microporous ceramic filter plate to absorb the external pressure difference by absorbing the vacuum inside the filter plate. Under the action of the negative pressure, the material is adsorbed on the filter plate, and the liquid is in the vacuum differential pressure. Under the filter plate into the distribution head device discharge to the vacuum barrel and the original system for recycling, to achieve the purpose of liquid-solid separation.



The ceramic filter mainly consists of the rotor, distribution head, agitator, scraper, slurry tank, back flushing system, ultrasonic cleaning system, PLC operating system and electric control system. When the equipment is in operation, it is divided into four areas: suction area, drying area, discharge area and backwash area.



HTG automatic ceramic filter has advanced technology, novel design and high performance. The core component, ceramic filter plate, is our advantage technology. It has many national inventions patents. It is the unit in charge of taking the lead to draft the national industry standard on ceramic filter and ceramic filter plate.It has the following Features:

  • Dewatering & drying performance with high vacuum and good filter cake, high productivity and excellent solids recovery.
  • Clear filtrate, neat work environment, and all-directional environmental protection system without pollution
  • PLC program control, high automation, easy operation, and high utilization of equipment.
  • Compact design, high performance, ultra-low operating and maintenance costs, and remarkable energy saving.



Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

        /5

HTG50

       /5

HTG60

       /5

HTG80

       /5

HTG100

        /5

HTG120

         /6

HTG144

       /12

HTG180

       /12

HTG204

       /12

HTG240

        /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786 4786



  • Customizable
