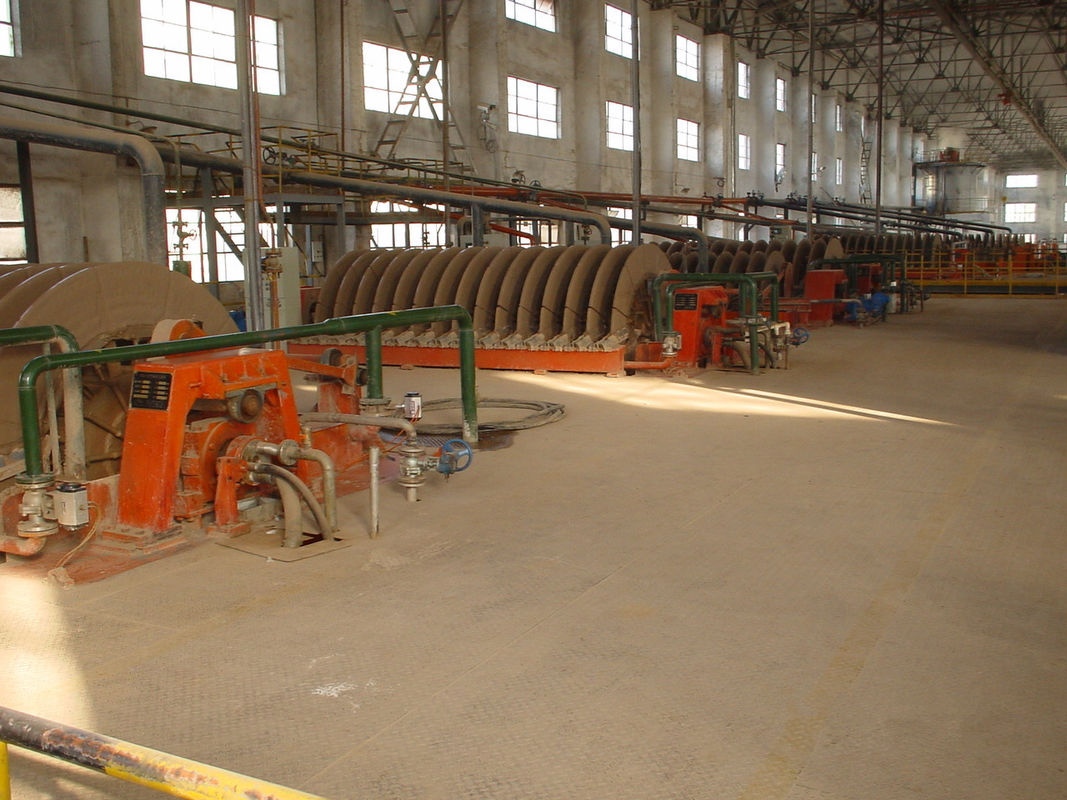

HTG High Efficient Ceramic Vacuum Filter Machine,Solid-liquid Separation
The company has started developing and manufacturing ceramic filters since the 1990s.It is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It has passed the national technical appraisal and rated as National Key New Product.
Dedicated in R&D and production of micro-porous ceramics and structural ceramics for 60 years, the company has the international advanced and domestic leading R&D equipment and solid R&D strength. It has national invention patents , and is the unit in charge of taking the lead to draft the national industry standard on ceramic filter .
|
Model Parameter |
HTG01/1 | HTG06/3 | HTG09/3 | HTG12/3 | HTG15/3 | HTG18/3 | HTG21/3 | HTG24/3 | HTG30/3 |
| Filtration area | 1 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Installed power | 6 | 8 | 10 | 11 | 14 | 15 | 15 | 15 | 18 |
| Weight(t) | 2.2 | 5.6 | 7.9 | 8.5 | 9.2 | 9.9 | 10.2 | 11.2 | 12.8 |
| Length (mm) | 1910 | 3062 | 4170 | 4360 | 4770 | 4780 | 5375 | 5453 | 6318 |
| Width(mm) | 1900 | 3025 | 2935 | 3200 | 3200 | 3200 | 3200 | 3200 | 3400 |
| Height (mm) | 1780 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
|
Model Parameter |
HTG45/3 | HTG51 / 3.75 | HTG45 / 3.75 | HTG60/4 | HTG80/4 | HTG15/5 | HTG20/5 | HTG25/5 | HTG30/5 |
| Filtration area | 45 | 51 | 45 | 60 | 80 | 15 | 20 | 25 | 30 |
| Installed power | 22 | 22 | 22 | 30 | 40 | 17 | 17 | 18 | 20 |
| Weight(t) | 15.6 | 13.1 | 12 | 18.5 | 24 | 7 | 7.2 | 7.9 | 9.5 |
| Length (mm) | 7998 | 6300 | 6100 | 8054 | 9562 | 3930 | 4470 | 4690 | 4810 |
| Width(mm) | 3410 | 3020 | 3020 | 3150 | 3510 | 3410 | 3510 | 3510 | 3510 |
| Height (mm) | 2750 | 2720 | 2720 | 3270 | 3233 | 2980 | 2980 | 2980 | 3035 |
|
Model Parameter |
HTG45 /5 |
HTG50 /5 |
HTG60 /5 |
HTG80 /5 |
HTG100 /5 |
HTG120 /6 |
HTG144 /12 |
HTG180 /12 |
HTG204 /12 |
HTG240 /12 |
| Filtration area | 45 | 50 | 60 | 80 | 100 | 120 | 144 | 180 | 204 | 240 |
| Installed power | 22 | 22 | 29 | 39 | 43 | 57 | 67 | 114 | 116.8 | 121 |
| Weight(t) | 11.3 | 12.5 | 14 | 18.5 | 23 | 25 | 28.5 | 39 | 42 | 45 |
| Length (mm) | 5470 | 5690 | 6130 | 7253 | 8094 | 9437 | 7260 | 9670 | 10470 | 11670 |
| Width(mm) | 3510 | 3510 | 3510 | 3510 | 3510 | 3565 | 5330 | 5330 | 5330 | 5330 |
| Height (mm) | 3035 | 3035 | 3035 | 3035 | 3035 | 3295 | 4786 | 4786 | 4786 | 4786 |
Customizable
Our products are sold all over the world, you can rest assured.
