High Precision 3 M2 Ceramic Filter Plate For Mining Dewatering Equipment

High Precision 3 M2 Ceramic Filter Plate For Mining Dewatering Equipment

  • High Light

    ceramic board

    ,

    ceramic micropore filter plate

    ,

    micro porous ceramic filter plate

  • Product Name
    Ceramic Filter Plate
  • Filter Material
    Corundum
  • Filtration Area
    1~12m2
  • Filter Fineness
    0.85µm ~5µm
  • Color
    White
  • Shape
    Sector
  • Place of Origin
    Jiangsu Yixing (Mainland)
  • Brand Name
    Yuxing
  • Certification
    ISO9001-2015
  • Minimum Order Quantity
    One Piece
  • Packaging Details
    strong export wooden cases
  • Delivery Time
    30 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100000 pieces/year

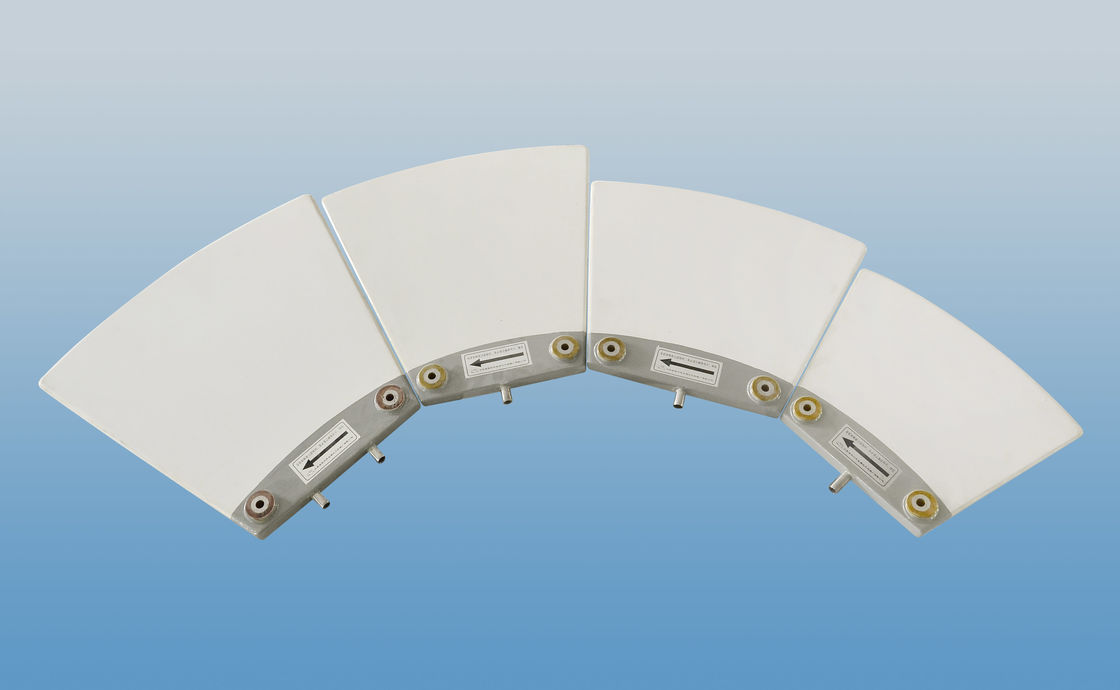

High Precision 3 M2 Ceramic Filter Plate For Mining Dewatering Equipment

High Precise 3 m2 Ceramic Filter Plate for Mining Dewatering Equipment





The new micro-porous ceramic filter plate is the core component of ceramic filter, it is porous filtration material by alumina through special process, and it is listed as the national innovation fund project and high-tech product.Specialized in R & D and production of micro-porous ceramics and structural ceramics for 60 years, we have provided users with the ceramic filter plates applied in different processes of enormous industries and fields.



Structural Function

In the work, when the ceramic micro-pores are appropriate, due to the capillary action, the water contained in the micro-pores will not escape, the liquid will always remain filling, and the air cannot pass through the filter plate, so low energy is consumed and better solid-liquid separation is achieved.

cleaning, wide application range and long service life and other features. It meets the application of different processes in many industries and fields, to provide users with more and better choices.



Selection of ceramic filter plate

 1m2 2m2 3m2 3.75m2 4m2 5m2 6m2 8m2 12m2



Selection of filter fineness

 0.85µm 1.25µm 2µm 5µm



Application scope

It is widely application to iron concentrates, zinc ore concentrates, sulfur concentrates, copper concentrates, nickel concentrates, molybdenum concentrates, lead concentrates, tungsten concentrates ,manganese concentrates , vanadium concentrates, gold concentrates, aluminum concentrates, and non-metallic concentrates for filtering and dewatering, as well as beneficiation of low-grade phosphorite, filtration and dewatering of various tailings.
