Durable Automatic Ceramic Disk Filter Stable Performance Clear Filtrate

Durable Automatic Ceramic Disk Filter Stable Performance Clear Filtrate

  • High Light

    automatic disc filter

    ,

    mining dewatering equipment

    ,

    Durable Ceramic Disk Filter

  • Product Name
    HTG Full-automatic Ceramic Filters
  • Filter Material
    Micro-hole Ceramic Filter Plate
  • Filtration Area
    1~240m2
  • Usage
    Sludge Dewatering
  • Efficient
    Filter Cake With Low Water
  • Automation
    PLC Program Control
  • Place of Origin
    Yixing,Jiangsu
  • Brand Name
    Yuxing
  • Certification
    ISO9001-2015
  • Model Number
    HTG
  • Minimum Order Quantity
    One Piece
  • Packaging Details
    Strong Export Wooden Cases
  • Delivery Time
    45 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 units per year

Durable Automatic Ceramic Disk Filter Stable Performance Clear Filtrate

Iron Ore Solid Liquid Separation Equipment, Ceramic Vacuum Filter for Sludge Dewatering

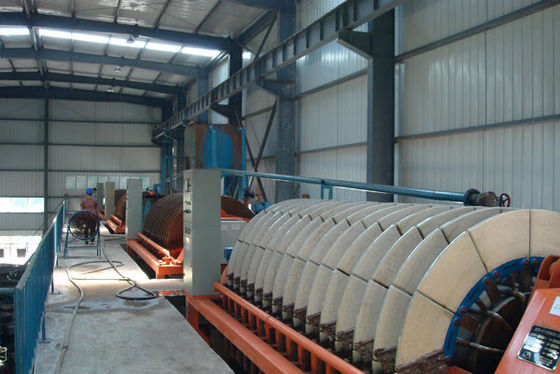

With the new microporous ceramics as the core technology, combined with ultrasonic technology, electromechanical, automatic control of high-tech solid-liquid separation equipment - HTG series automatic ceramic filter, mainly consists of the rotor, distribution head, agitator, scraper, slurry tank, back flushing system, ultrasonic cleaning system, PLC operating system and electric control system. It has been widely used due to the technical advantages of high efficiency, energy saving, environmental protection, etc. It has changed the state of backwardness, waste of resources and serious environmental pollution in the traditional dewatering of raw ore concentrates, non-metallic concentrates and tailings.



HTG automatic ceramic filter has technical advantages in R&D and production of micro-porous ceramics for more than 60 years, and has a number of national invention patents.I The company is the unit in charge of taking the lead to draft the national industry standard. Its characteristics of compact design, high performance, PLC program control, low operating cost, all-round environmental protection system, long life, provide more valuable products and technical services for global mine concentrates, beneficiation, non-metallic minerals, various tailings The user's filtration, dehydration and other processes.



Product features

  • Dewatering & drying performance with high vacuum and good filter cake, high productivity and excellent solids recovery.
  • Clear filtrate, neat work environment, and all-directional environmental protection system without pollution
  • PLC program control, high automation, easy operation, and high utilization of equipment.
  • Compact design, high performance, ultra-low operating and maintenance costs, and remarkable energy saving.
  • Ceramic filter plate has a long service life and wide application.



Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

        /5

HTG50

        /5

HTG60

        /5

HTG80

        /5

HTG100

          /5

HTG120

          /6

HTG144

        /12

HTG180

        /12

HTG204

        /12

HTG240

        /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786

4786

  • Customizable
