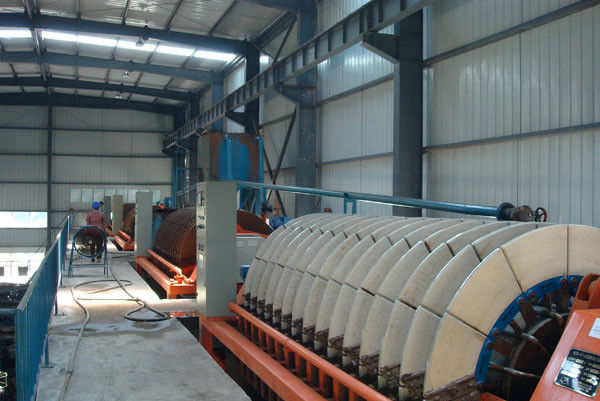

HTG Series Full-automatic Ceramic Vacuum Disc Filter for Iron Ore Dewatering
Ceramic filter is a solid-liquid separation equipment with its micro-porous ceramic filter plate as its core technology combined with high-tech such as electromechanical, ultrasonic technology and automatic control. It is applicable to environmental protection industries such as mining, mineral processing and metallurgy.
our pursuit is constantly innovating, enterprising, and providing customers with high-performance, low-energy, pollution-free environmentally friendly products. Breaking through the large-scale production of ceramic filter plates, the large-scale and ultra-large design and manufacture of ceramic filters. The ceramic filters of 120m2,144 m2,180 m2,204 m2,244 m2 models offer users more and more optimized options.
Model Parameter |
HTG01/1 | HTG06/3 | HTG09/3 | HTG12/3 | HTG15/3 | HTG18/3 | HTG21/3 | HTG24/3 | HTG30/3 |
Filtration area | 1 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
Installed power | 6 | 8 | 10 | 11 | 14 | 15 | 15 | 15 | 18 |
Weight(t) | 2.2 | 5.6 | 7.9 | 8.5 | 9.2 | 9.9 | 10.2 | 11.2 | 12.8 |
Length (mm) | 1910 | 3062 | 4170 | 4360 | 4770 | 4780 | 5375 | 5453 | 6318 |
Width(mm) | 1900 | 3025 | 2935 | 3200 | 3200 | 3200 | 3200 | 3200 | 3400 |
Height (mm) | 1780 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
Model Parameter |
HTG45/3 | HTG51 / 3.75 | HTG45 / 3.75 | HTG60/4 | HTG80/4 | HTG15/5 | HTG20/5 | HTG25/5 | HTG30/5 |
Filtration area | 45 | 51 | 45 | 60 | 80 | 15 | 20 | 25 | 30 |
Installed power | 22 | 22 | 22 | 30 | 40 | 17 | 17 | 18 | 20 |
Weight(t) | 15.6 | 13.1 | 12 | 18.5 | 24 | 7 | 7.2 | 7.9 | 9.5 |
Length (mm) | 7998 | 6300 | 6100 | 8054 | 9562 | 3930 | 4470 | 4690 | 4810 |
Width(mm) | 3410 | 3020 | 3020 | 3150 | 3510 | 3410 | 3510 | 3510 | 3510 |
Height (mm) | 2750 | 2720 | 2720 | 3270 | 3233 | 2980 | 2980 | 2980 | 3035 |
Model Parameter |
HTG45 /5 |
HTG50 /5 |
HTG60 /5 |
HTG80 /5 |
HTG100 /5 |
HTG120 /6 |
HTG144 /12 |
HTG180 /12 |
HTG204 /12 |
HTG240 /12 |
Filtration area | 45 | 50 | 60 | 80 | 100 | 120 | 144 | 180 | 204 | 240 |
Installed power | 22 | 22 | 29 | 39 | 43 | 57 | 67 | 114 | 116.8 | 121 |
Weight(t) | 11.3 | 12.5 | 14 | 18.5 | 23 | 25 | 28.5 | 39 | 42 | 45 |
Length (mm) | 5470 | 5690 | 6130 | 7253 | 8094 | 9437 | 7260 | 9670 | 10470 | 11670 |
Width(mm) | 3510 | 3510 | 3510 | 3510 | 3510 | 3565 | 5330 | 5330 | 5330 | 5330 |
Height (mm) | 3035 | 3035 | 3035 | 3035 | 3035 | 3295 | 4786 | 4786 | 4786 |
4786 |
Customizable
