Mining Ore Disc Vacuum Dehydrator 1~240m2 Filtration Area Energy Saving

Mining Ore Disc Vacuum Dehydrator 1~240m2 Filtration Area Energy Saving

  • High Light

    vacuum rotary drum filter

    ,

    rotary drum vacuum filter

    ,

    Mining Ore Disc Vacuum Dehydrator

  • Product Name
    HTG Full-automatic Ceramic Filters
  • Filter Material
    Micro-hole Ceramic Filter Plate
  • Filtration Area
    1~240m2
  • Usage
    Sludge Dewatering
  • Efficient
    High Productivity
  • Weight
    See The Parameter List
  • Place of Origin
    Yixing,Jiangsu
  • Brand Name
    Yuxing
  • Certification
    ISO9001-2015
  • Model Number
    HTG
  • Minimum Order Quantity
    One Piece
  • Packaging Details
    Strong Export Wooden Cases
  • Delivery Time
    45 work days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    100 units per year

Mining Ore Disc Vacuum Dehydrator 1~240m2 Filtration Area Energy Saving

Mining Ore Dewatering Equipment,Disc Vacuum Dehydrator for Sludge Dewatering





HTG full-automatic ceramic filter is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It is the unit in charge of taking the lead to draft the national industry standard on ceramic filter and ceramic filter plate. It has more than 20 national patents for ceramic filter.



The ceramic filter mainly consists of the rotor, distribution head, agitator, scraper, slurry tank, back flushing system, ultrasonic cleaning system, PLC operating system and electric control system. It is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. When the equipment is in operation, it is divided into four areas: suction area, drying area, discharge area and backwash area.

  • suction area:the ceramic filter plate immersed in the slurry forms a thick layer of granular stack rapidly on the surface of the ceramic plate under the action of vacuum(filter cake).
  • drying area:The filter cake formed with the rotation enters the drying zone and continues to be dewatered under the action of vacuum.
  • discharge area:The dried filter cake is automatically unloaded by a spatula and then it is transported by belt to the desired place.
  • backwash area:After discharging, the ceramic plate finally enters the backwash zone. The filtered backwash fluid enters the interior of the ceramic plate through the distribution head and flushes the particles blocked in the micro-pore of the ceramic plate, thus completing a cycle of filtering operation.

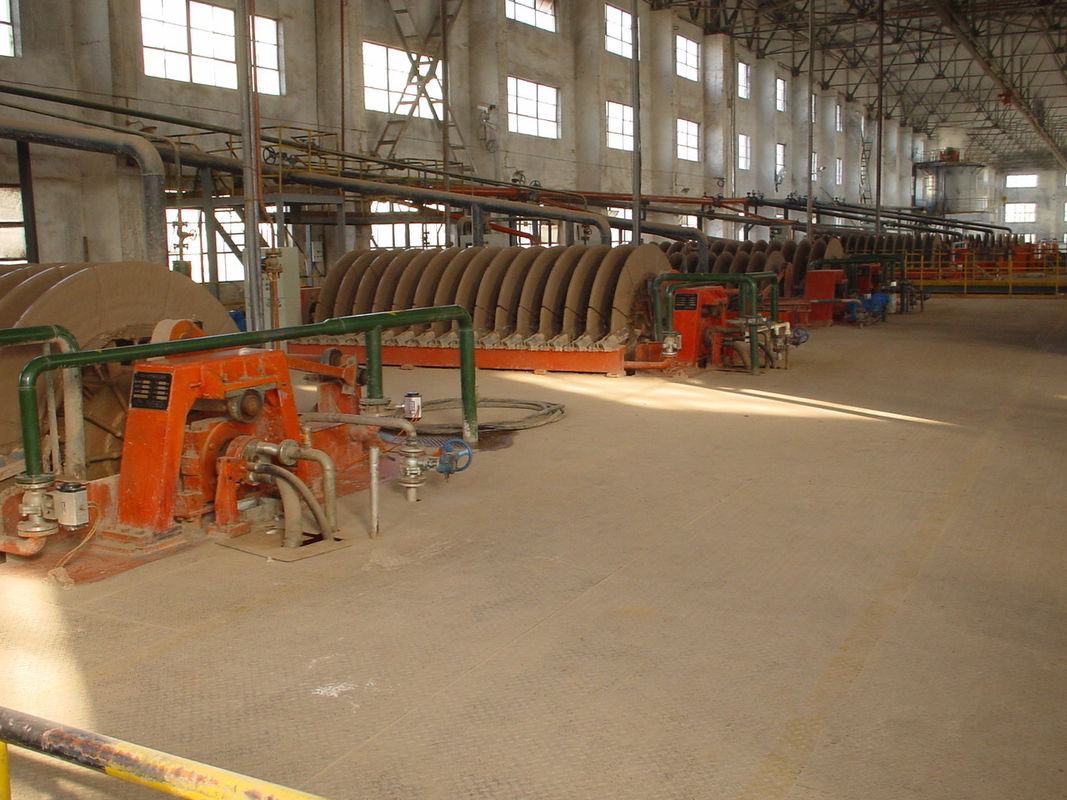

Mining Ore Disc Vacuum Dehydrator 1~240m2 Filtration Area Energy Saving 0

Product Features

  • Dewatering & drying performance with high vacuum and good filter cake, high productivity and excellent solids recovery.
  • Clear filtrate, neat work environment, and all-directional environmental protection system without pollution
  • PLC program control, high automation, easy operation, and high utilization of equipment.
  • Compact design, high performance, ultra-low operating and maintenance costs, and remarkable energy saving.
  • Ceramic filter plate has a long service life and wide application.



Technical Specifications



Model

Parameter

HTG01/1 HTG06/3 HTG09/3 HTG12/3 HTG15/3 HTG18/3 HTG21/3 HTG24/3 HTG30/3
Filtration area 1 6 9 12 15 18 21 24 30
Installed power 6 8 10 11 14 15 15 15 18
Weight(t) 2.2 5.6 7.9 8.5 9.2 9.9 10.2 11.2 12.8
Length (mm) 1910 3062 4170 4360 4770 4780 5375 5453 6318
Width(mm) 1900 3025 2935 3200 3200 3200 3200 3200 3400
Height (mm) 1780 2750 2750 2750 2750 2750 2750 2750 2750



Model

Parameter

HTG45/3 HTG51 / 3.75 HTG45 / 3.75 HTG60/4 HTG80/4 HTG15/5 HTG20/5 HTG25/5 HTG30/5
Filtration area 45 51 45 60 80 15 20 25 30
Installed power 22 22 22 30 40 17 17 18 20
Weight(t) 15.6 13.1 12 18.5 24 7 7.2 7.9 9.5
Length (mm) 7998 6300 6100 8054 9562 3930 4470 4690 4810
Width(mm) 3410 3020 3020 3150 3510 3410 3510 3510 3510
Height (mm) 2750 2720 2720 3270 3233 2980 2980 2980 3035



Model

Parameter

HTG45

        /5

HTG50

        /5

HTG60

        /5

HTG80

        /5

HTG100

          /5

HTG120

          /6

HTG144

        /12

HTG180

        /12

HTG204

        /12

HTG240

        /12

Filtration area 45 50 60 80 100 120 144 180 204 240
Installed power 22 22 29 39 43 57 67 114 116.8 121
Weight(t) 11.3 12.5 14 18.5 23 25 28.5 39 42 45
Length (mm) 5470 5690 6130 7253 8094 9437 7260 9670 10470 11670
Width(mm) 3510 3510 3510 3510 3510 3565 5330 5330 5330 5330
Height (mm) 3035 3035 3035 3035 3035 3295 4786 4786 4786

4786

  • Customizable
