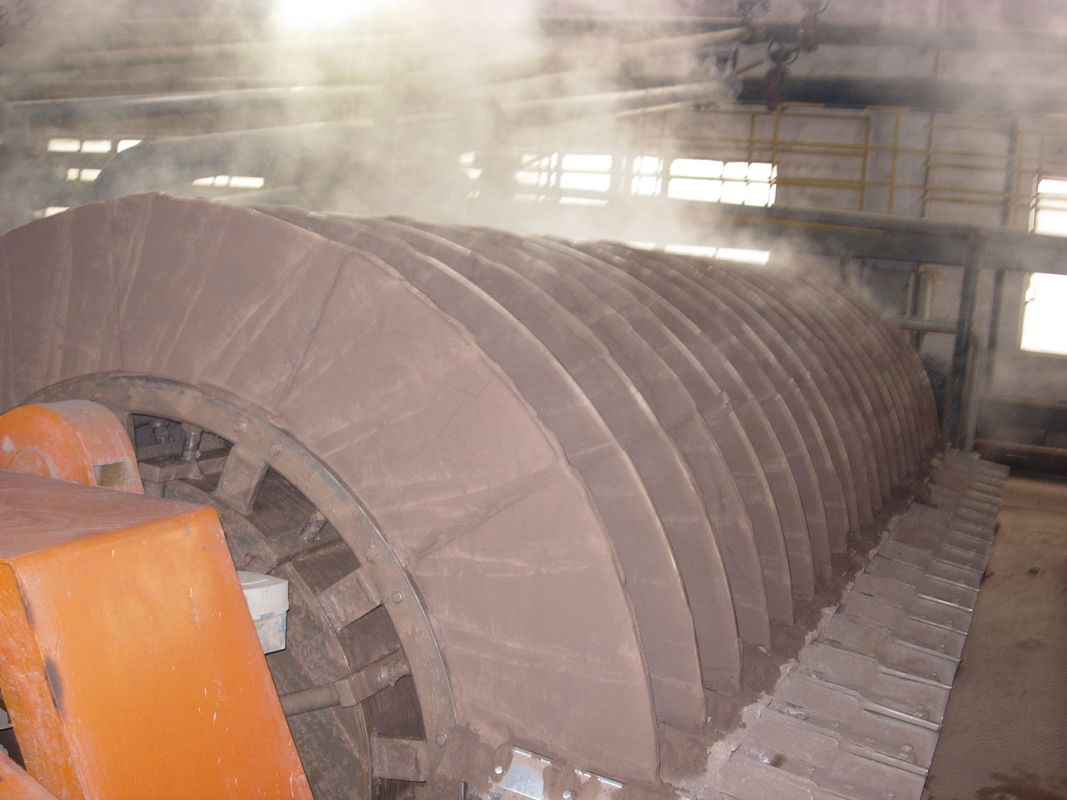

High Filtration Precision Ceramic Disc Vacuum Dehydrator for Sludge Dewatering
HTG full-automatic ceramic filter is new, efficient, energy-saving and environment-friendly high-tech dewatering equipment that integrates micro-porous ceramics, electromechanical and ultrasonic technologies and automatic control. It is the unit in charge of taking the lead to draft the national industry standard on ceramic filter and ceramic filter plate. It has more than 20 national patents for ceramic filter.
In the spirit of pioneering, innovation and all-round service, we are dedicated to providing best solutions for filtration and dewatering of domestic and foreign iron concentrates, copper concentrates, zinc concentrates, sulfur concentrates, nickel concentrates, lead concentrates, aluminum concentrates, gold concentrates, vanadium concentrates, non-metallic concentrates, as well as beneficiation of low-grade phosphorite, filtration and dewatering of various tailings, and other technological and environmental problems.
|
Model Parameter |
HTG01/1 | HTG06/3 | HTG09/3 | HTG12/3 | HTG15/3 | HTG18/3 | HTG21/3 | HTG24/3 | HTG30/3 |
| Filtration area | 1 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 30 |
| Installed power | 6 | 8 | 10 | 11 | 14 | 15 | 15 | 15 | 18 |
| Weight(t) | 2.2 | 5.6 | 7.9 | 8.5 | 9.2 | 9.9 | 10.2 | 11.2 | 12.8 |
| Length (mm) | 1910 | 3062 | 4170 | 4360 | 4770 | 4780 | 5375 | 5453 | 6318 |
| Width(mm) | 1900 | 3025 | 2935 | 3200 | 3200 | 3200 | 3200 | 3200 | 3400 |
| Height (mm) | 1780 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 | 2750 |
|
Model Parameter |
HTG45/3 | HTG51 / 3.75 | HTG45 / 3.75 | HTG60/4 | HTG80/4 | HTG15/5 | HTG20/5 | HTG25/5 | HTG30/5 |
| Filtration area | 45 | 51 | 45 | 60 | 80 | 15 | 20 | 25 | 30 |
| Installed power | 22 | 22 | 22 | 30 | 40 | 17 | 17 | 18 | 20 |
| Weight(t) | 15.6 | 13.1 | 12 | 18.5 | 24 | 7 | 7.2 | 7.9 | 9.5 |
| Length (mm) | 7998 | 6300 | 6100 | 8054 | 9562 | 3930 | 4470 | 4690 | 4810 |
| Width(mm) | 3410 | 3020 | 3020 | 3150 | 3510 | 3410 | 3510 | 3510 | 3510 |
| Height (mm) | 2750 | 2720 | 2720 | 3270 | 3233 | 2980 | 2980 | 2980 | 3035 |
|
Model Parameter |
HTG45 /5 |
HTG50 /5 |
HTG60 /5 |
HTG80 /5 |
HTG100 /5 |
HTG120 /6 |
HTG144 /12 |
HTG180 /12 |
HTG204 /12 |
HTG240 /12 |
| Filtration area | 45 | 50 | 60 | 80 | 100 | 120 | 144 | 180 | 204 | 240 |
| Installed power | 22 | 22 | 29 | 39 | 43 | 57 | 67 | 114 | 116.8 | 121 |
| Weight(t) | 11.3 | 12.5 | 14 | 18.5 | 23 | 25 | 28.5 | 39 | 42 | 45 |
| Length (mm) | 5470 | 5690 | 6130 | 7253 | 8094 | 9437 | 7260 | 9670 | 10470 | 11670 |
| Width(mm) | 3510 | 3510 | 3510 | 3510 | 3510 | 3565 | 5330 | 5330 | 5330 | 5330 |
| Height (mm) | 3035 | 3035 | 3035 | 3035 | 3035 | 3295 | 4786 | 4786 | 4786 |
4786 |
Customizable
